Model

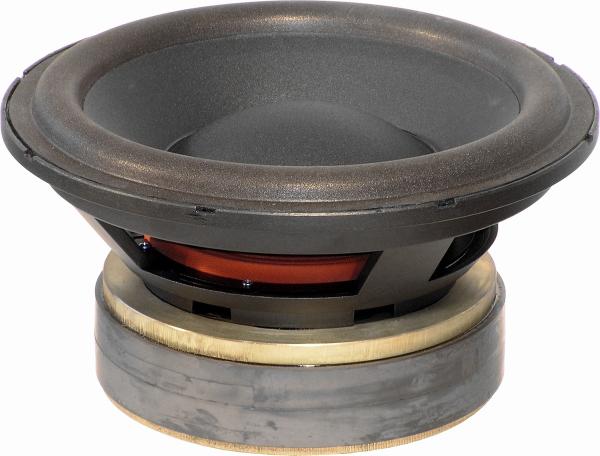

Noema 1000ГДН38-1
Rating
DIAM
12"
FS(Hz)
40
VAS(l)
27.2
QTS
0.29
PWR(W)
2000
SPL(dB)
90
IMP(Ohm)
1x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
27.2
Qts
0.29
Qms
14.2
Qes
0.29
Bl(Tm)
13.2
Mms(gr)
232
Cms(mm/N)
0.07
Rms(kg/s)
4.106
Le(mH)
0.73
Re(Ohm)
0.9
Sd(sq.mm)
52878
Vd(l)
0.635
X-max(mm)
12
X-mech(mm)
24
General Parameters
Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
1
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.58
Sensitivity(dB) 1-W
90
Sensitivity(dB) 2.8-V
99.3
Mounting Information
Speaker Displacement (l)
4
Total Diameter (mm)
316
Cutout Diameter (mm)
286
Mounting Depth (mm)
178
Magnet Diameter (mm)
220
Optimum Enclosures
Enclosures
Vented, BP6
