Model

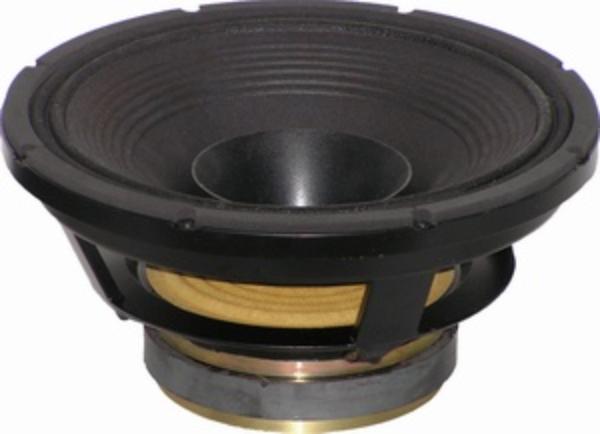

Noema 100ГДШ47-8
Rating
DIAM
10"
FS(Hz)
47
VAS(l)
56
QTS
0.4
PWR(W)
1000
SPL(dB)
93
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
47
Vas(l)
56
Qts
0.4
Qms
3.8
Qes
0.45
Bl(Tm)
12.3
Mms(gr)
34
Cms(mm/N)
0.337
Rms(kg/s)
2.64
Le(mH)
0.23
Re(Ohm)
6.8
Sd(sq.mm)
34230
Vd(l)
0.154
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.25
Sensitivity(dB) 1-W
93
Sensitivity(dB) 2.8-V
93.7
Mounting Information
Speaker Displacement (l)
1.5
Total Diameter (mm)
260
Cutout Diameter (mm)
235
Mounting Depth (mm)
112
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
