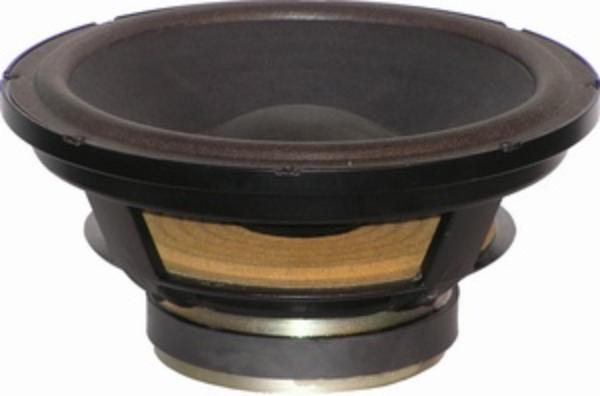

Noema 150ГДН45-8
Noema 150ГДН45-8
Model

Noema 150ГДН45-8

Rating
DIAM
10"
FS(Hz)
29
VAS(l)
81
QTS
0.3
PWR(W)
300
SPL(dB)
89.9
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
29
Vas(l)
81
Qts
0.3
Qms
7.7
Qes
0.31
Bl(Tm)
16.7
Mms(gr)
69
Cms(mm/N)
0.44
Rms(kg/s)
1.63
Le(mH)
3.5
Re(Ohm)
6.8
Sd(sq.mm)
36300
Vd(l)
0.218
X-max(mm)
6
X-mech(mm)
20

General Parameters

Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.61
Sensitivity(dB) 1-W
89.9
Sensitivity(dB) 2.8-V
90.6

Mounting Information

Speaker Displacement (l)
1.5
Total Diameter (mm)
260
Cutout Diameter (mm)
235
Mounting Depth (mm)
138
Magnet Diameter (mm)
120

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
