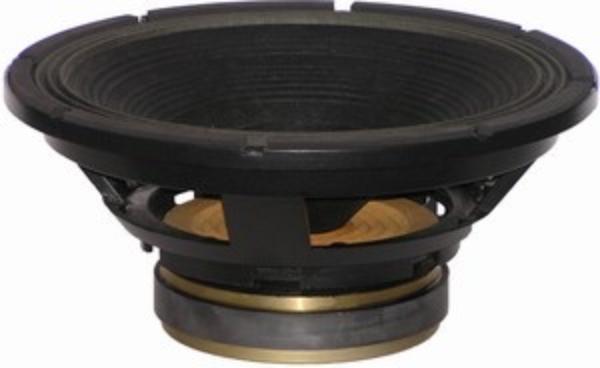

Noema 150ГДШ35-4
Noema 150ГДШ35-4
Model

Noema 150ГДШ35-4

Rating
DIAM
12"
FS(Hz)
42
VAS(l)
119
QTS
0.34
PWR(W)
300
SPL(dB)
95.6
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
42
Vas(l)
119
Qts
0.34
Qms
4.37
Qes
0.37
Bl(Tm)
10.7
Mms(gr)
47
Cms(mm/N)
0.306
Rms(kg/s)
2.838
Le(mH)
0.16
Re(Ohm)
3.4
Sd(sq.mm)
52364
Vd(l)
0.236
X-max(mm)
5
X-mech(mm)
15

General Parameters

Diameter (inch)
12
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
2.3
Sensitivity(dB) 1-W
95.6
Sensitivity(dB) 2.8-V
99.3

Mounting Information

Speaker Displacement (l)
2.9
Total Diameter (mm)
316
Cutout Diameter (mm)
286
Mounting Depth (mm)
120
Magnet Diameter (mm)
157

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
