Model

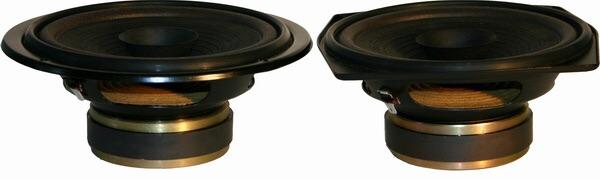

Noema 50ГДШ64-FA4
Rating
DIAM
6"
FS(Hz)
45
VAS(l)
26
QTS
0.9
PWR(W)
50
SPL(dB)
85.3
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
45
Vas(l)
26
Qts
0.9
Qms
5.9
Qes
1.07
Bl(Tm)
3.1
Mms(gr)
12
Cms(mm/N)
1.034
Rms(kg/s)
0.58
Le(mH)
0.2
Re(Ohm)
3
Sd(sq.mm)
13315
Vd(l)
0.047
X-max(mm)
4
X-mech(mm)
10
General Parameters
Diameter (inch)
6
Max Power(W.)
50
RMS Power(W.)
25
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.21
Sensitivity(dB) 1-W
85.3
Sensitivity(dB) 2.8-V
89.6
Mounting Information
Speaker Displacement (l)
0.5
Total Diameter (mm)
178
Cutout Diameter (mm)
135
Mounting Depth (mm)
69
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
