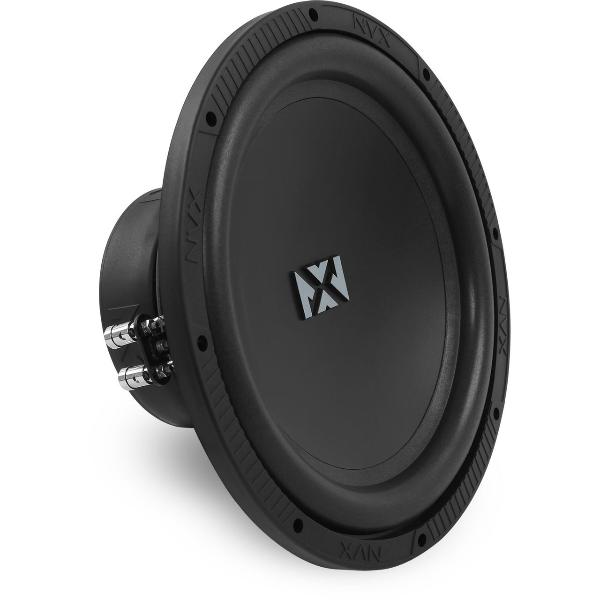

NVX NSW122V2
NVX NSW122V2
Model

NVX NSW122V2

Rating
DIAM
12"
FS(Hz)
28.5
VAS(l)
54.7
QTS
0.75
PWR(W)
750
SPL(dB)
92
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
28.5
Vas(l)
54.7
Qts
0.751
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
33464
Vd(l)
0.402
X-max(mm)
12
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
750
RMS Power(W.)
350
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
1
Sensitivity(dB) 1-W
92
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
315
Cutout Diameter (mm)
275
Mounting Depth (mm)
127
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
