Model

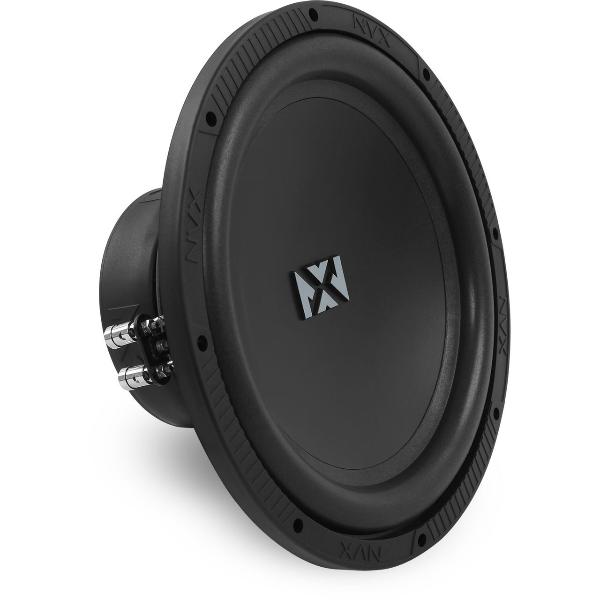

NVX NSW124V2
Rating
DIAM
12"
FS(Hz)
28
VAS(l)
56.3
QTS
0.73
PWR(W)
700
SPL(dB)
92
IMP(Ohm)
4x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
28
Vas(l)
56.3
Qts
0.734
Qms
0
Qes
0
Bl(Tm)
0
Mms(gr)
218
Cms(mm/N)
0.148
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
51870
Vd(l)
0.622
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
92
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
315
Cutout Diameter (mm)
275
Mounting Depth (mm)
127
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
