Model

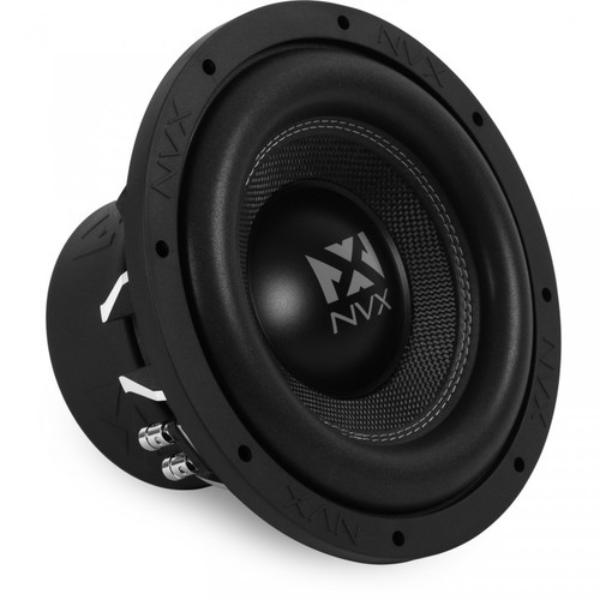

NVX VCW104
Rating
DIAM
10"
FS(Hz)
31
VAS(l)
23.2
QTS
0.53
PWR(W)
1500
SPL(dB)
82.7
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31
Vas(l)
23.2
Qts
0.525
Qms
2.981
Qes
0.563
Bl(Tm)
29.1
Mms(gr)
382
Cms(mm/N)
0.069
Rms(kg/s)
24.96
Le(mH)
0
Re(Ohm)
6.4
Sd(sq.mm)
48690
Vd(l)
0.974
X-max(mm)
20
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.12
Sensitivity(dB) 1-W
82.7
Sensitivity(dB) 2.8-V
83.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
280
Cutout Diameter (mm)
230
Mounting Depth (mm)
152
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
