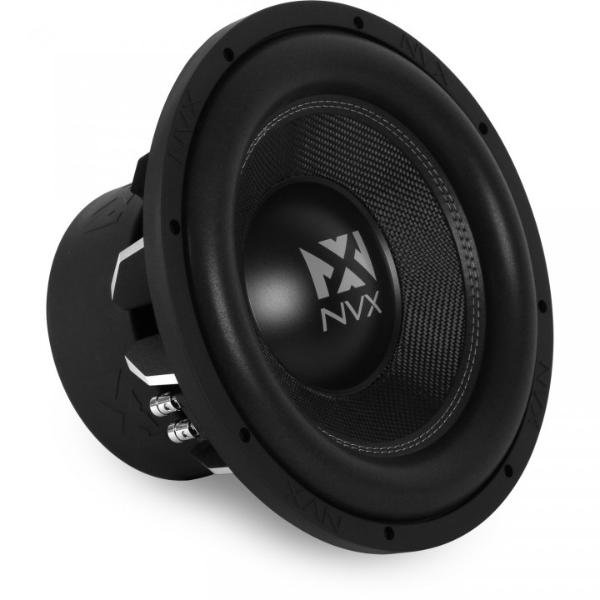

NVX VCW122
NVX VCW122
Model

NVX VCW122

Rating
DIAM
12"
FS(Hz)
24
VAS(l)
33.8
QTS
0.45
PWR(W)
2000
SPL(dB)
81.7
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
24
Vas(l)
33.8
Qts
0.454
Qms
6.895
Qes
0.486
Bl(Tm)
16
Mms(gr)
411
Cms(mm/N)
0.107
Rms(kg/s)
8.989
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
47136
Vd(l)
0.943
X-max(mm)
20
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.09
Sensitivity(dB) 1-W
81.7
Sensitivity(dB) 2.8-V
87.7

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
320
Cutout Diameter (mm)
275
Mounting Depth (mm)
178
Magnet Diameter (mm)
254

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
