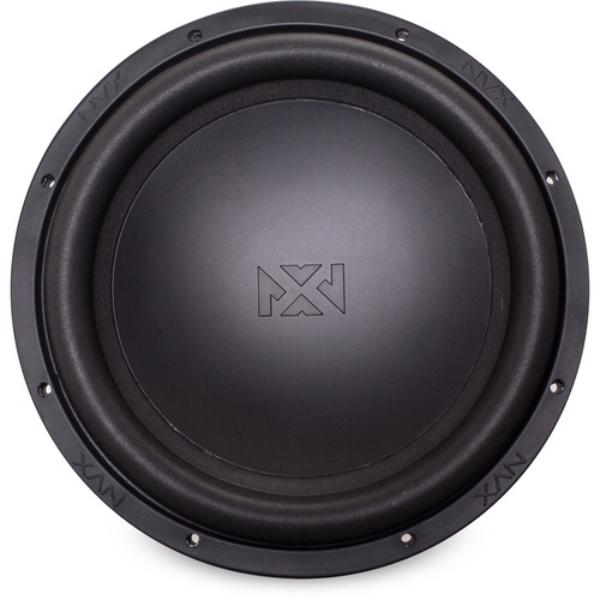

NVX VSW102V2
NVX VSW102V2
Model

NVX VSW102V2

Rating
DIAM
10"
FS(Hz)
30
VAS(l)
27.3
QTS
0.48
PWR(W)
1000
SPL(dB)
83.3
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
30
Vas(l)
27.3
Qts
0.476
Qms
4.2
Qes
0.537
Bl(Tm)
0
Mms(gr)
156
Cms(mm/N)
0.18
Rms(kg/s)
7.02
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
33000
Vd(l)
0.234
X-max(mm)
11
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.13
Sensitivity(dB) 1-W
83.3
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
263
Cutout Diameter (mm)
236
Mounting Depth (mm)
127
Magnet Diameter (mm)
178

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6P

Speaker response
