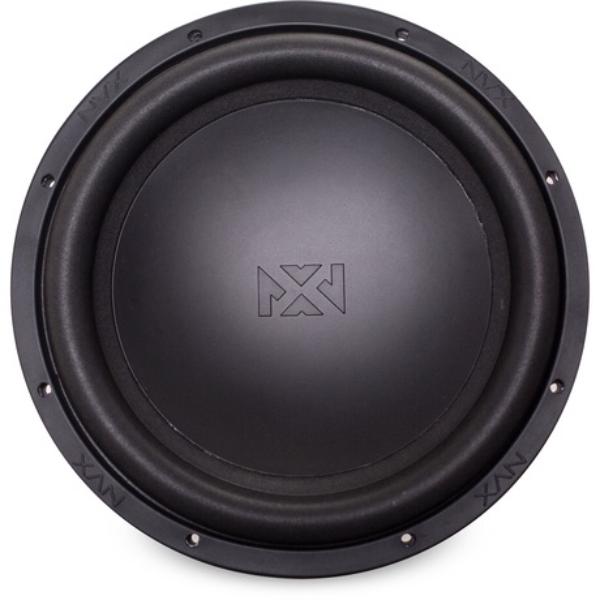

NVX VSW122V2
NVX VSW122V2
Model

NVX VSW122V2

Rating
DIAM
12"
FS(Hz)
25
VAS(l)
66.2
QTS
0.4
PWR(W)
1200
SPL(dB)
85.6
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
25
Vas(l)
66.2
Qts
0.396
Qms
4.2
Qes
0.437
Bl(Tm)
0
Mms(gr)
209
Cms(mm/N)
0.194
Rms(kg/s)
7.81
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
49080
Vd(l)
0.589
X-max(mm)
12
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.23
Sensitivity(dB) 1-W
85.6
Sensitivity(dB) 2.8-V
91.6

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
316
Cutout Diameter (mm)
282
Mounting Depth (mm)
151
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6P

Speaker response
