Model

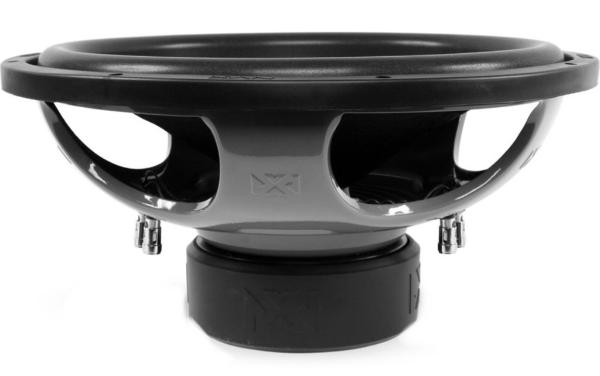

NVX VSW154V2
Rating
DIAM
15"
FS(Hz)
23
VAS(l)
179.8
QTS
0.49
PWR(W)
1500
SPL(dB)
88
IMP(Ohm)
4x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
23
Vas(l)
179.8
Qts
0.489
Qms
6
Qes
0.532
Bl(Tm)
12.3
Mms(gr)
277
Cms(mm/N)
0.173
Rms(kg/s)
6.67
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
85500
Vd(l)
1.026
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.4
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
94
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
393
Cutout Diameter (mm)
357
Mounting Depth (mm)
173
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
