Model

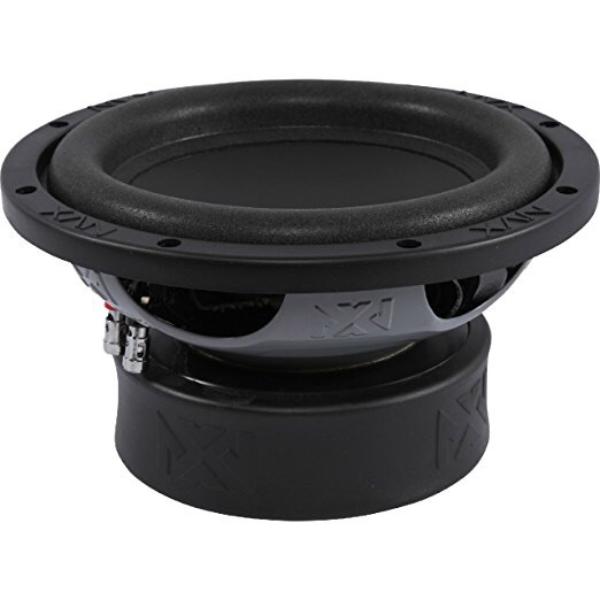

NVX VSW82V2
Rating
DIAM
8"
FS(Hz)
53
VAS(l)
6.6
QTS
0.59
PWR(W)
800
SPL(dB)
85
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
53
Vas(l)
6.6
Qts
0.595
Qms
4.171
Qes
0.694
Bl(Tm)
8.6
Mms(gr)
78
Cms(mm/N)
0.116
Rms(kg/s)
6.2
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
20110
Vd(l)
0.181
X-max(mm)
9
X-mech(mm)
9
General Parameters
Diameter (inch)
8
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.1
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
89.4
Mounting Information
Speaker Displacement (l)
2
Total Diameter (mm)
216
Cutout Diameter (mm)
183
Mounting Depth (mm)
111
Magnet Diameter (mm)
160
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
