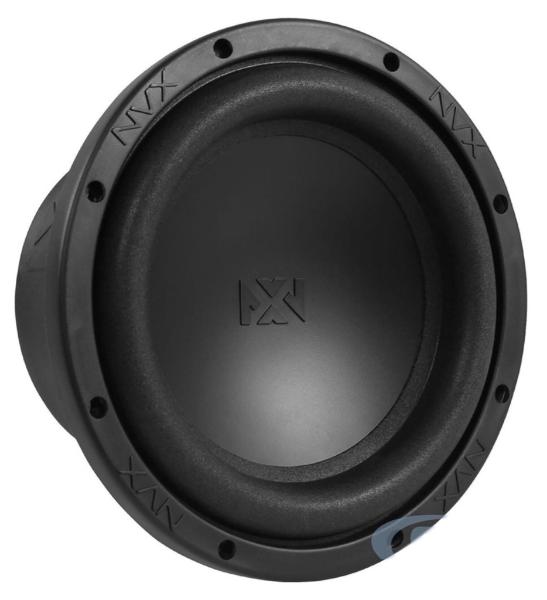

NVX VSW84V2
NVX VSW84V2
Model

NVX VSW84V2

Rating
DIAM
8"
FS(Hz)
53
VAS(l)
6.7
QTS
0.59
PWR(W)
800
SPL(dB)
83.4
IMP(Ohm)
4x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
53
Vas(l)
6.7
Qts
0.595
Qms
4.2
Qes
0.694
Bl(Tm)
8.6
Mms(gr)
78
Cms(mm/N)
0.116
Rms(kg/s)
6.16
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
20110
Vd(l)
0.181
X-max(mm)
9
X-mech(mm)
0

General Parameters

Diameter (inch)
8
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.14
Sensitivity(dB) 1-W
83.4
Sensitivity(dB) 2.8-V
89.4

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
216
Cutout Diameter (mm)
183
Mounting Depth (mm)
111
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6P

Speaker response
