Model

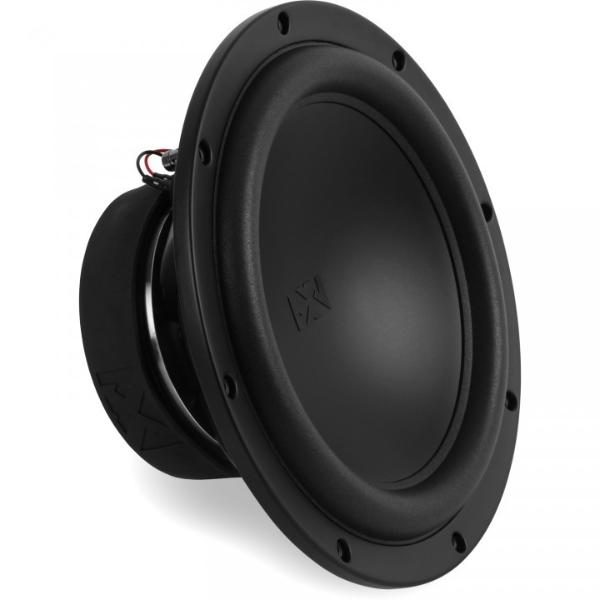

NVX XQW122
Rating
DIAM
12"
FS(Hz)
29.1
VAS(l)
61.6
QTS
0.38
PWR(W)
800
SPL(dB)
89
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
29.1
Vas(l)
61.6
Qts
0.38
Qms
5.2
Qes
0.41
Bl(Tm)
0
Mms(gr)
153
Cms(mm/N)
0.195
Rms(kg/s)
5.045
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
47140
Vd(l)
0.943
X-max(mm)
20
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
306
Mounting Depth (mm)
146
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
