Model

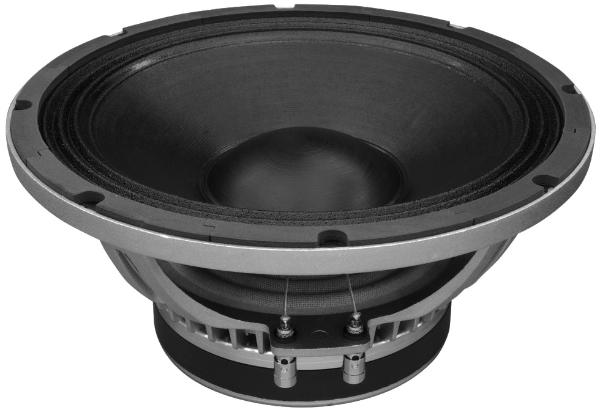

Oberton 12B450
Rating
DIAM
12"
FS(Hz)
46.3
VAS(l)
71.75
QTS
0.23
PWR(W)
900
SPL(dB)
96.5
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
46.3
Vas(l)
71.8
Qts
0.235
Qms
9.6
Qes
0.241
Bl(Tm)
19.3
Mms(gr)
61
Cms(mm/N)
0.194
Rms(kg/s)
1.85
Le(mH)
1.1
Re(Ohm)
5.1
Sd(sq.mm)
51500
Vd(l)
0.402
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
900
RMS Power(W.)
450
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.85
Sensitivity(dB) 1-W
96.5
Sensitivity(dB) 2.8-V
98.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
315
Cutout Diameter (mm)
280
Mounting Depth (mm)
153
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
