Model

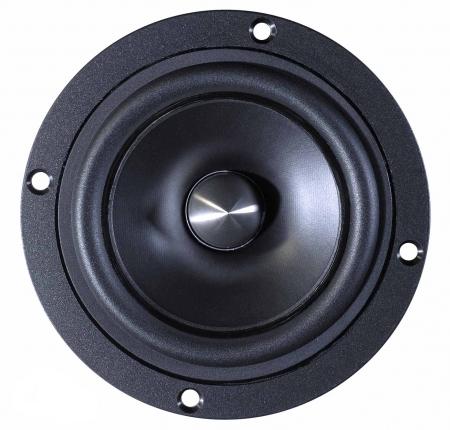

Omnes audio BB 3.01
Rating
DIAM
3"
FS(Hz)
97
VAS(l)
1.6
QTS
0.46
PWR(W)
15
SPL(dB)
85.9
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
97
Vas(l)
1.6
Qts
0.46
Qms
2.5
Qes
0.56
Bl(Tm)
2.9
Mms(gr)
2
Cms(mm/N)
1.14
Rms(kg/s)
0.62
Le(mH)
0.07
Re(Ohm)
3.5
Sd(sq.mm)
3106
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
15
RMS Power(W.)
15
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.25
Sensitivity(dB) 1-W
85.9
Sensitivity(dB) 2.8-V
89.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
93
Cutout Diameter (mm)
74
Mounting Depth (mm)
45
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
