Model

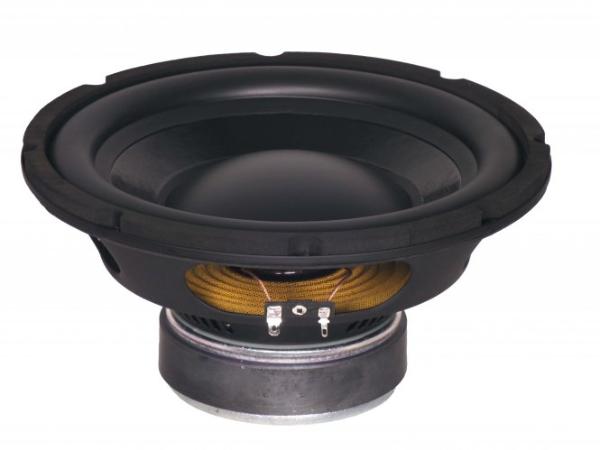

Omnes audio SW 10.01
Rating
DIAM
10"
FS(Hz)
33
VAS(l)
43.9
QTS
0.45
PWR(W)
300
SPL(dB)
87.1
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
43.9
Qts
0.45
Qms
9.14
Qes
0.473
Bl(Tm)
10.9
Mms(gr)
90
Cms(mm/N)
0.258
Rms(kg/s)
2.04
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
34637
Vd(l)
0.208
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
226
Mounting Depth (mm)
112
Magnet Diameter (mm)
120
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
