Model

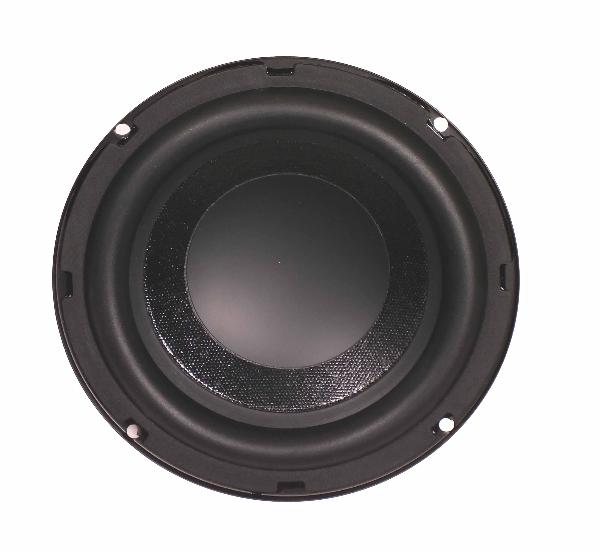

Omnes audio SW6.01
Rating
DIAM
6"
FS(Hz)
45
VAS(l)
6.8
QTS
0.44
PWR(W)
140
SPL(dB)
82.9
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
45
Vas(l)
6.8
Qts
0.44
Qms
4.37
Qes
0.49
Bl(Tm)
8.7
Mms(gr)
39
Cms(mm/N)
0.324
Rms(kg/s)
2.5
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
12700
Vd(l)
0.102
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
140
RMS Power(W.)
70
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
82.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
141
Mounting Depth (mm)
83
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
