Model

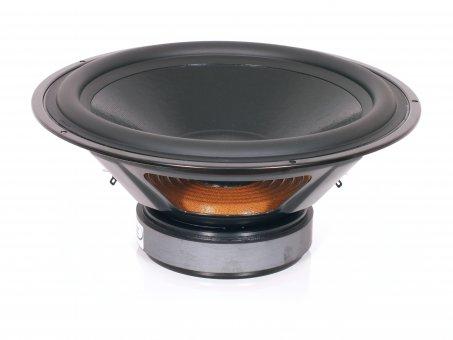

Omnes audio W12.2
Rating
DIAM
12"
FS(Hz)
24
VAS(l)
151
QTS
0.33
PWR(W)
249
SPL(dB)
89.4
IMP(Ohm)
8x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
24
Vas(l)
151
Qts
0.33
Qms
3.5
Qes
0.37
Bl(Tm)
11.9
Mms(gr)
109
Cms(mm/N)
0.4
Rms(kg/s)
4.7
Le(mH)
1.5
Re(Ohm)
3.2
Sd(sq.mm)
52200
Vd(l)
0.365
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
249
RMS Power(W.)
129
Number of Coils
2
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.54
Sensitivity(dB) 1-W
89.4
Sensitivity(dB) 2.8-V
93.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
