Model

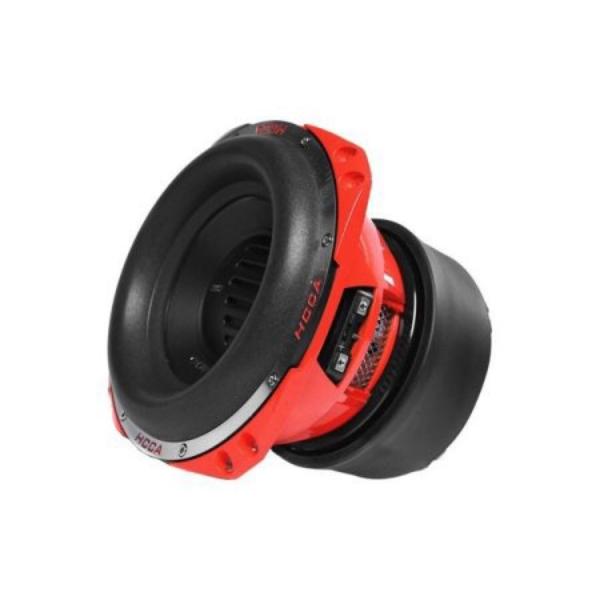

Orion HCCA122 BLACK COIL
Rating
DIAM
12"
FS(Hz)
32.3
VAS(l)
25.2
QTS
0.45
PWR(W)
10000
SPL(dB)
84.1
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.3
Vas(l)
25.2
Qts
0.45
Qms
5.1
Qes
0.5
Bl(Tm)
26.3
Mms(gr)
426
Cms(mm/N)
0.057
Rms(kg/s)
16.95
Le(mH)
2.61
Re(Ohm)
4
Sd(sq.mm)
55987
Vd(l)
1.691
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
10000
RMS Power(W.)
2500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.16
Sensitivity(dB) 1-W
84.1
Sensitivity(dB) 2.8-V
87.2
Mounting Information
Speaker Displacement (l)
7.93
Total Diameter (mm)
0
Cutout Diameter (mm)
292
Mounting Depth (mm)
261
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
