Model

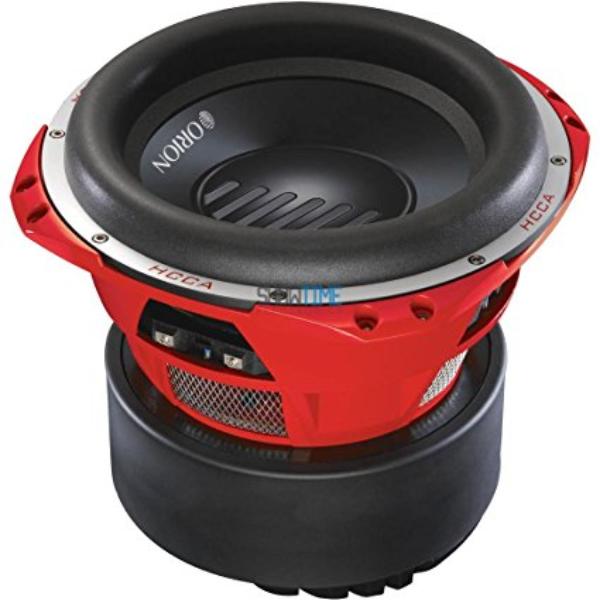

Orion HCCA152 BLACK COIL
Rating
DIAM
15"
FS(Hz)
23.7
VAS(l)
113.7
QTS
0.4
PWR(W)
5000
SPL(dB)
87
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
23.7
Vas(l)
113.7
Qts
0.4
Qms
2.99
Qes
0.46
Bl(Tm)
26
Mms(gr)
518
Cms(mm/N)
0.087
Rms(kg/s)
25.813
Le(mH)
2.59
Re(Ohm)
4.1
Sd(sq.mm)
96000
Vd(l)
2.88
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
5000
RMS Power(W.)
2500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.32
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
89.9
Mounting Information
Speaker Displacement (l)
10.1
Total Diameter (mm)
0
Cutout Diameter (mm)
383
Mounting Depth (mm)
294
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
