Model

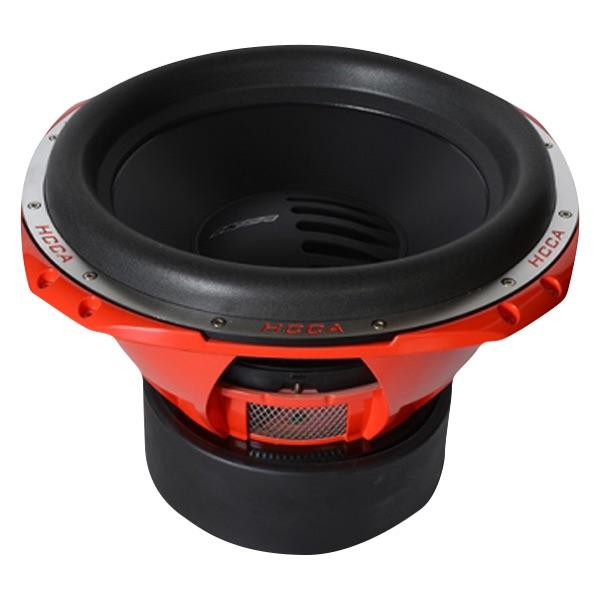

Orion HCCA154SPL
Rating
DIAM
15"
FS(Hz)
29.3
VAS(l)
55.8
QTS
0.52
PWR(W)
20000
SPL(dB)
87
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29.3
Vas(l)
55.8
Qts
0.52
Qms
5.981
Qes
0.43
Bl(Tm)
39.7
Mms(gr)
690
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
962
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
20000
RMS Power(W.)
5000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.31
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
9.996
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
