Model

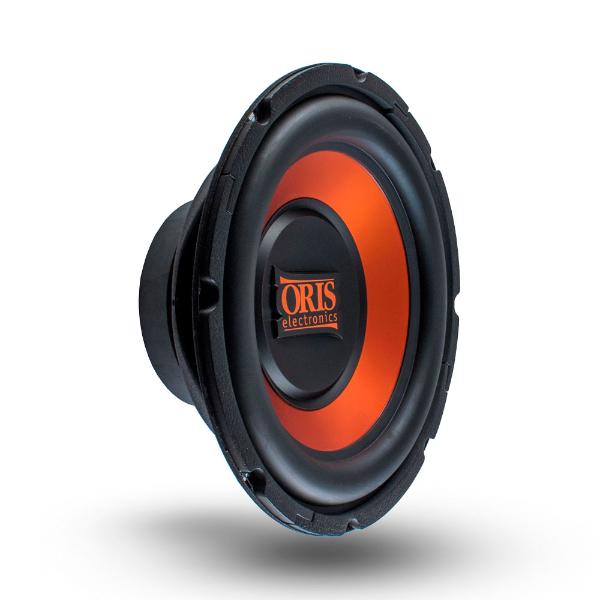

Oris Electronics ASW-1040
Rating
DIAM
10"
FS(Hz)
30.4
VAS(l)
70.8
QTS
0.29
PWR(W)
400
SPL(dB)
86
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
30.4
Vas(l)
70.8
Qts
0.29
Qms
5.53
Qes
0.306
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
2.3
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
228
Mounting Depth (mm)
104
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
