Model

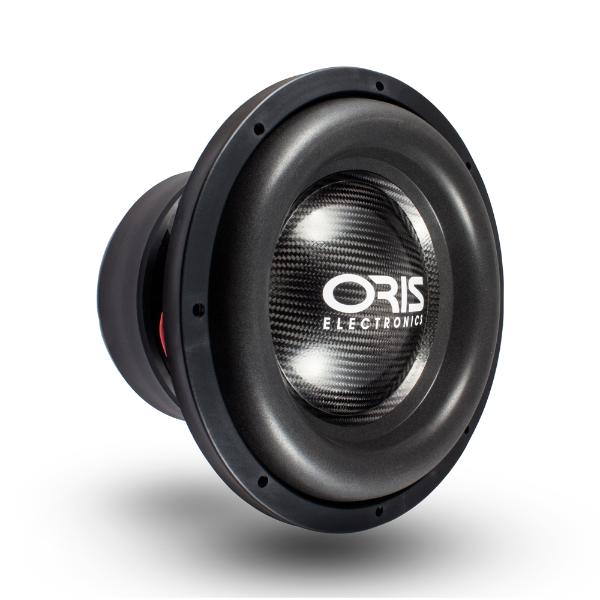

Oris Electronics LW-D1.12S
Rating
DIAM
12"
FS(Hz)
37.8
VAS(l)
18.4
QTS
0.46
PWR(W)
5000
SPL(dB)
84.9
IMP(Ohm)
0.5x2
avb
UNK
Thiele-Small Parameters
Fs(Hz)
37.8
Vas(l)
18.4
Qts
0.463
Qms
7.18
Qes
0.495
Bl(Tm)
0
Mms(gr)
276
Cms(mm/N)
0.064
Rms(kg/s)
9.122
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
45011
Vd(l)
1.35
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
5000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
0.5
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
200
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
