Model

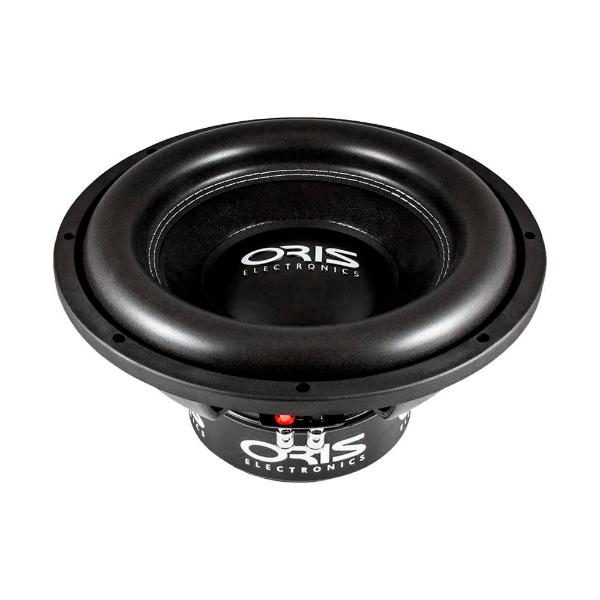

Oris Electronics LW-D2.15
Rating
DIAM
15"
FS(Hz)
28.6
VAS(l)
60.5
QTS
0.61
PWR(W)
1300
SPL(dB)
85.1
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28.6
Vas(l)
60.5
Qts
0.614
Qms
8.7
Qes
0.661
Bl(Tm)
19.6
Mms(gr)
379
Cms(mm/N)
0.082
Rms(kg/s)
7.83
Le(mH)
0
Re(Ohm)
3.7
Sd(sq.mm)
73100
Vd(l)
1.097
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1300
RMS Power(W.)
650
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.21
Sensitivity(dB) 1-W
85.1
Sensitivity(dB) 2.8-V
88.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
