Model

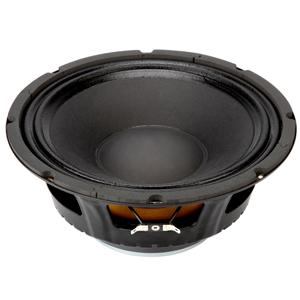

P.Audio E10-150S
Rating
DIAM
10"
FS(Hz)
53
VAS(l)
84.1
QTS
0.5
PWR(W)
600
SPL(dB)
95.4
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
53
Vas(l)
84.1
Qts
0.5
Qms
5.15
Qes
0.55
Bl(Tm)
9.5
Mms(gr)
20
Cms(mm/N)
0.442
Rms(kg/s)
1.3
Le(mH)
0.606
Re(Ohm)
5.8
Sd(sq.mm)
36300
Vd(l)
0.149
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.19
Sensitivity(dB) 1-W
95.4
Sensitivity(dB) 2.8-V
96.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
257
Cutout Diameter (mm)
233
Mounting Depth (mm)
104
Magnet Diameter (mm)
130
Optimum Enclosures
Enclosures
Vented, BP6P
