Model

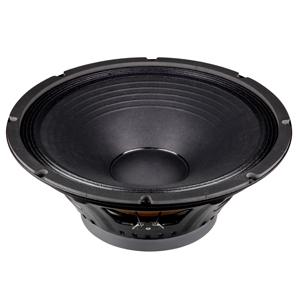

P.Audio E15-300S2
Rating
DIAM
15"
FS(Hz)
39
VAS(l)
228.8
QTS
0.29
PWR(W)
1200
SPL(dB)
98.4
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
228.8
Qts
0.29
Qms
6.7
Qes
0.3
Bl(Tm)
19.9
Mms(gr)
74
Cms(mm/N)
0.224
Rms(kg/s)
2.72
Le(mH)
0.73
Re(Ohm)
6.4
Sd(sq.mm)
85500
Vd(l)
0.368
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
4.36
Sensitivity(dB) 1-W
98.4
Sensitivity(dB) 2.8-V
99.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
381
Cutout Diameter (mm)
360
Mounting Depth (mm)
152
Magnet Diameter (mm)
200
Optimum Enclosures
Enclosures
Vented, BP6P
