Model

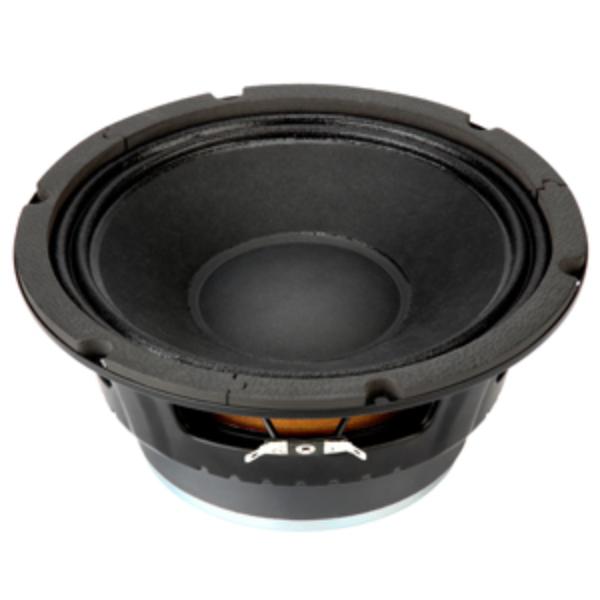

P.Audio E8-150S
Rating
DIAM
8"
FS(Hz)
62
VAS(l)
19.8
QTS
0.35
PWR(W)
600
SPL(dB)
92.6
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
62
Vas(l)
19.8
Qts
0.35
Qms
2.5
Qes
0.4
Bl(Tm)
11.7
Mms(gr)
24
Cms(mm/N)
0.272
Rms(kg/s)
3.72
Le(mH)
0.62
Re(Ohm)
5.8
Sd(sq.mm)
22661
Vd(l)
0.086
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
600
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.14
Sensitivity(dB) 1-W
92.6
Sensitivity(dB) 2.8-V
94
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
210
Cutout Diameter (mm)
184
Mounting Depth (mm)
84
Magnet Diameter (mm)
130
Optimum Enclosures
Enclosures
Vented, BP6P
