Model

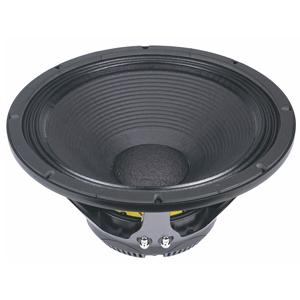

P.Audio FL-18ELF
Rating
DIAM
18"
FS(Hz)
36
VAS(l)
209.8
QTS
0.39
PWR(W)
800
SPL(dB)
95.6
IMP(Ohm)
8x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
36
Vas(l)
209.8
Qts
0.39
Qms
7.7
Qes
0.41
Bl(Tm)
25.2
Mms(gr)
191
Cms(mm/N)
0.102
Rms(kg/s)
5.62
Le(mH)
0.76
Re(Ohm)
6.1
Sd(sq.mm)
120296
Vd(l)
0.962
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
800
RMS Power(W.)
800
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
2.3
Sensitivity(dB) 1-W
95.6
Sensitivity(dB) 2.8-V
96.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
476
Cutout Diameter (mm)
423
Mounting Depth (mm)
232
Magnet Diameter (mm)
237
Optimum Enclosures
Enclosures
Vented, BP6P
