Model

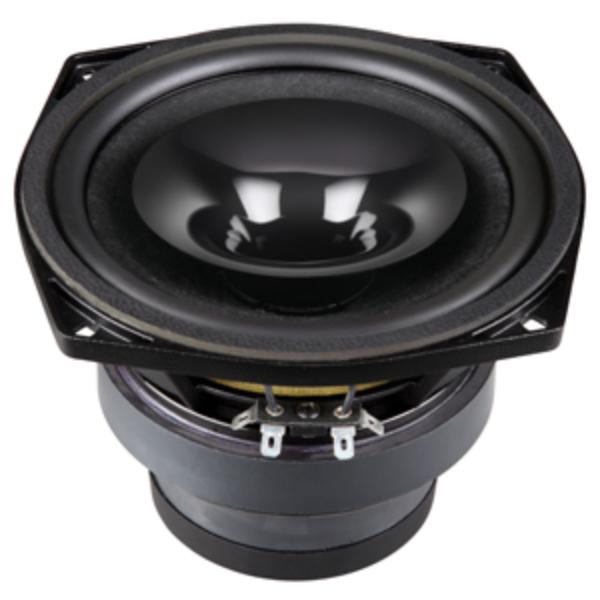

P.Audio SN6-150CX
Rating
DIAM
6"
FS(Hz)
71
VAS(l)
11.2
QTS
0.37
PWR(W)
600
SPL(dB)
91.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
71
Vas(l)
11.2
Qts
0.37
Qms
5.2
Qes
0.4
Bl(Tm)
8.9
Mms(gr)
13
Cms(mm/N)
0.39
Rms(kg/s)
1.11
Le(mH)
0.42
Re(Ohm)
5.5
Sd(sq.mm)
14230
Vd(l)
0.054
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
600
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.97
Sensitivity(dB) 1-W
91.9
Sensitivity(dB) 2.8-V
93.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
187
Cutout Diameter (mm)
145
Mounting Depth (mm)
123
Magnet Diameter (mm)
120
Optimum Enclosures
Enclosures
Vented, BP6P
