Model

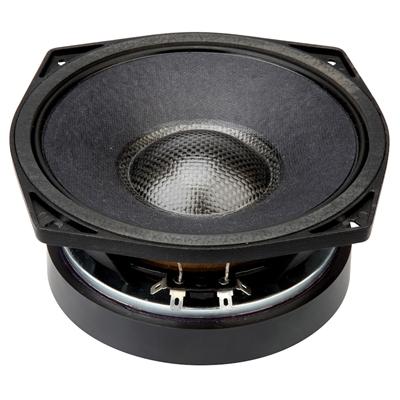

P.Audio SN6-200F
Rating
DIAM
6"
FS(Hz)
76
VAS(l)
11.5
QTS
0.29
PWR(W)
800
SPL(dB)
93.8
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
76
Vas(l)
11.5
Qts
0.29
Qms
3.7
Qes
0.32
Bl(Tm)
9.7
Mms(gr)
13
Cms(mm/N)
0.16
Rms(kg/s)
1.64
Le(mH)
0.22
Re(Ohm)
5
Sd(sq.mm)
15400
Vd(l)
0.038
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
800
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.53
Sensitivity(dB) 1-W
93.8
Sensitivity(dB) 2.8-V
95.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
