Model

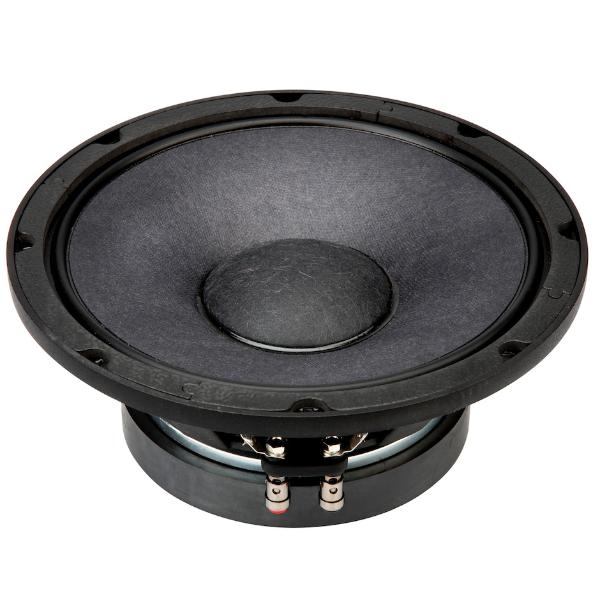

P.Audio SN8-200F
Rating
DIAM
8"
FS(Hz)
89
VAS(l)
13.4
QTS
0.46
PWR(W)
800
SPL(dB)
94.6
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
89
Vas(l)
13.4
Qts
0.46
Qms
5.3
Qes
0.5
Bl(Tm)
10.5
Mms(gr)
19
Cms(mm/N)
0.17
Rms(kg/s)
2.03
Le(mH)
0.26
Re(Ohm)
5
Sd(sq.mm)
24100
Vd(l)
0.06
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
800
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.83
Sensitivity(dB) 1-W
94.6
Sensitivity(dB) 2.8-V
96.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
