Model

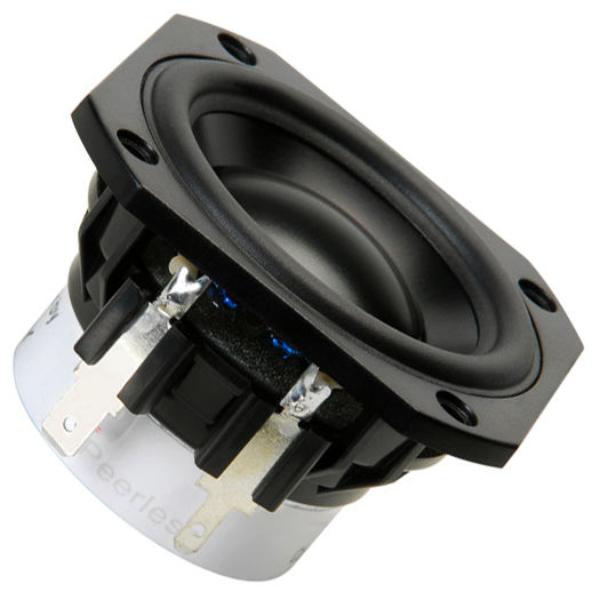

Peerless 830983
Rating
DIAM
2"
FS(Hz)
147
VAS(l)
0.2
QTS
0.57
PWR(W)
120
SPL(dB)
81.4
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
147
Vas(l)
0.2
Qts
0.57
Qms
3.1
Qes
0.7
Bl(Tm)
2.8
Mms(gr)
2
Cms(mm/N)
0.76
Rms(kg/s)
0.47
Le(mH)
0.2
Re(Ohm)
3.8
Sd(sq.mm)
1300
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
2
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.09
Sensitivity(dB) 1-W
81.4
Sensitivity(dB) 2.8-V
84.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
55
Cutout Diameter (mm)
50
Mounting Depth (mm)
30
Magnet Diameter (mm)
36
Optimum Enclosures
Enclosures
Vented, BP6
