Model

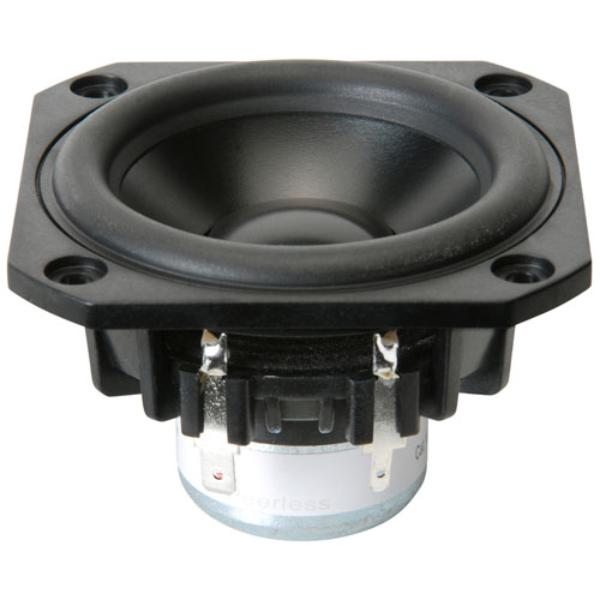

Peerless 830986
Rating
DIAM
3"
FS(Hz)
105
VAS(l)
0.9
QTS
0.76
PWR(W)
30
SPL(dB)
82.7
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
105
Vas(l)
0.9
Qts
0.76
Qms
5.1
Qes
0.89
Bl(Tm)
3.4
Mms(gr)
3
Cms(mm/N)
0.884
Rms(kg/s)
0.336
Le(mH)
0
Re(Ohm)
6.2
Sd(sq.mm)
2730
Vd(l)
0.005
X-max(mm)
2
X-mech(mm)
0
General Parameters
Diameter (inch)
3
Max Power(W.)
30
RMS Power(W.)
12
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
82.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
72
Mounting Depth (mm)
47
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
