Model

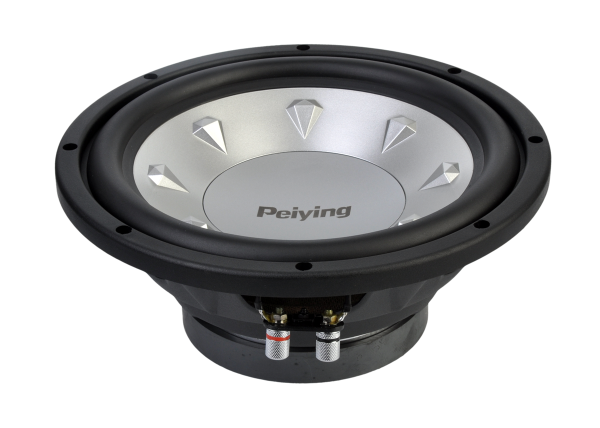

Peiying PY- BC300F1
Rating
DIAM
12"
FS(Hz)
28.8
VAS(l)
114.7
QTS
0.48
PWR(W)
500
SPL(dB)
88.6
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
28.8
Vas(l)
114.7
Qts
0.483
Qms
2.877
Qes
0.58
Bl(Tm)
9.8
Mms(gr)
91
Cms(mm/N)
0.336
Rms(kg/s)
5.717
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
49087
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
284
Mounting Depth (mm)
125
Magnet Diameter (mm)
145
Optimum Enclosures
Enclosures
Closed, BP4
