Model

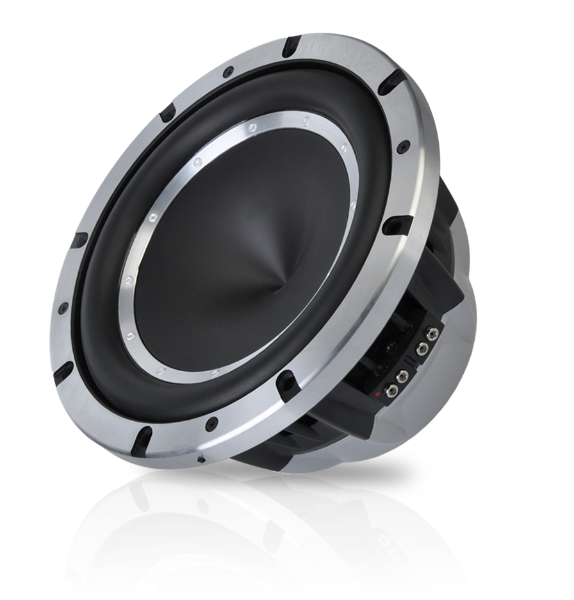

Peiying PY-BL250A10
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
10"
FS(Hz)
25
VAS(l)
30.8
QTS
0.45
PWR(W)
400
SPL(dB)
81.7
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
25
Vas(l)
30.8
Qts
0.448
Qms
4.333
Qes
0.499
Bl(Tm)
10.7
Mms(gr)
64
Cms(mm/N)
0.629
Rms(kg/s)
2.36
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
18581
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
217
Mounting Depth (mm)
145
Magnet Diameter (mm)
160
Optimum Enclosures
Enclosures
Closed, BP4
