Model

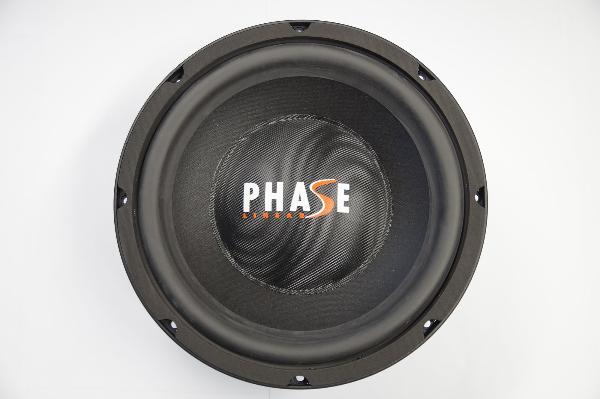

Phase Linear Thriller 3000
Rating
DIAM
12"
FS(Hz)
30
VAS(l)
56
QTS
0.35
PWR(W)
500
SPL(dB)
88
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
56
Qts
0.35
Qms
6.475
Qes
0.37
Bl(Tm)
14.6
Mms(gr)
168
Cms(mm/N)
0.168
Rms(kg/s)
4.882
Le(mH)
0
Re(Ohm)
2.5
Sd(sq.mm)
49000
Vd(l)
0.784
X-max(mm)
16
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
500
RMS Power(W.)
260
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.39
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
92
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
314
Cutout Diameter (mm)
279
Mounting Depth (mm)
150
Magnet Diameter (mm)
150
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
