Model

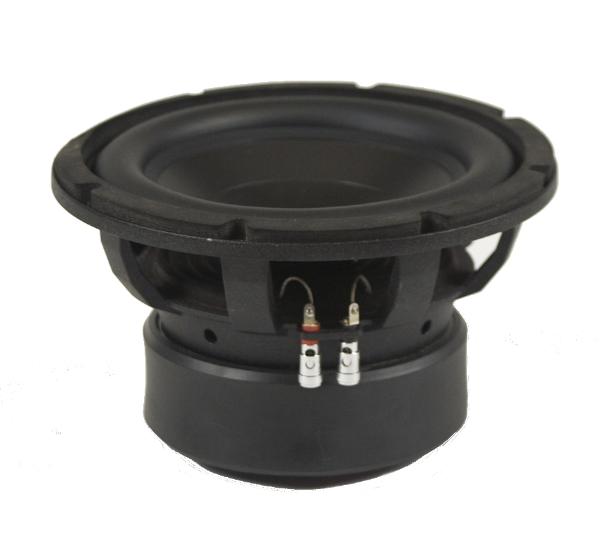

PHD FB 10.1
Rating
DIAM
10"
FS(Hz)
29.5
VAS(l)
47.3
QTS
0.23
PWR(W)
500
SPL(dB)
88.9
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
29.5
Vas(l)
47.3
Qts
0.228
Qms
4.619
Qes
0.239
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
236
Mounting Depth (mm)
146
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
