Model

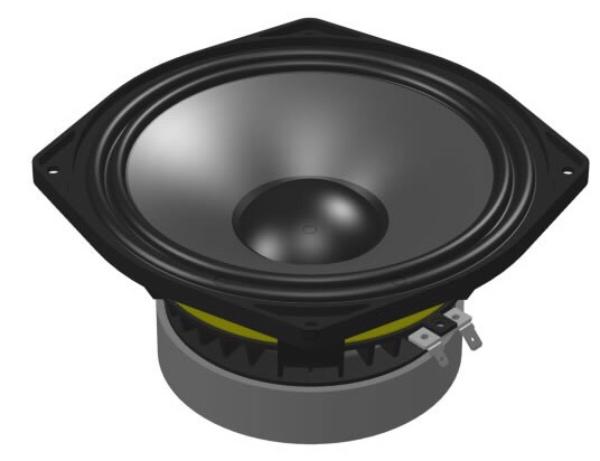

Phl Audio 2710
Rating
DIAM
8"
FS(Hz)
70
VAS(l)
15.6
QTS
0.31
PWR(W)
500
SPL(dB)
93.9
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
70
Vas(l)
15.6
Qts
0.31
Qms
2.8
Qes
0.33
Bl(Tm)
13.5
Mms(gr)
25
Cms(mm/N)
0.21
Rms(kg/s)
3.93
Le(mH)
1.61
Re(Ohm)
5.5
Sd(sq.mm)
23200
Vd(l)
0.209
X-max(mm)
9
X-mech(mm)
19
General Parameters
Diameter (inch)
8
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.56
Sensitivity(dB) 1-W
93.9
Sensitivity(dB) 2.8-V
95.6
Mounting Information
Speaker Displacement (l)
0.9
Total Diameter (mm)
235
Cutout Diameter (mm)
185
Mounting Depth (mm)
99
Magnet Diameter (mm)
137
Optimum Enclosures
Enclosures
Vented, BP6P
