Model

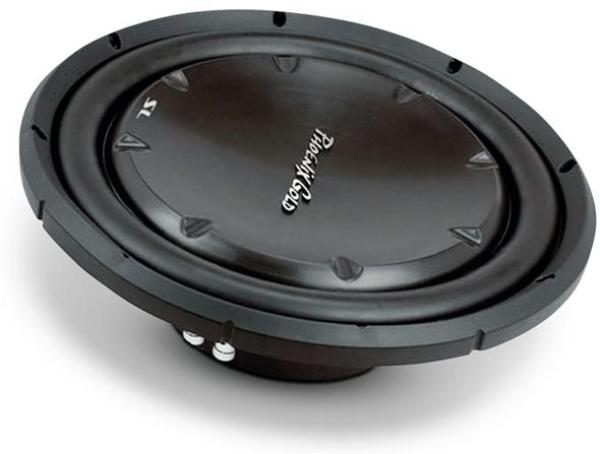

Phoenix Gold SL12D4
Rating
DIAM
12"
FS(Hz)
32.9
VAS(l)
53.29
QTS
0.67
PWR(W)
600
SPL(dB)
85.6
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.9
Vas(l)
53.3
Qts
0.67
Qms
4.4
Qes
0.79
Bl(Tm)
8.4
Mms(gr)
175
Cms(mm/N)
0.133
Rms(kg/s)
8.24
Le(mH)
0
Re(Ohm)
1.5
Sd(sq.mm)
53000
Vd(l)
0.662
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
280
Mounting Depth (mm)
103
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, Closed
