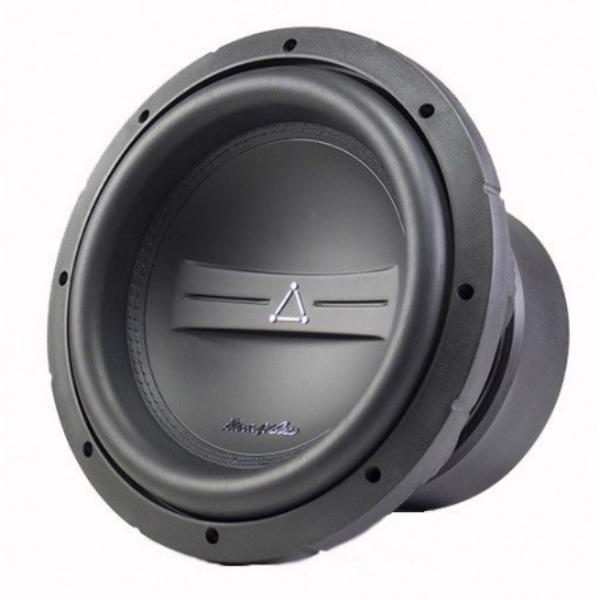

Phoenix Gold TI310D4
Phoenix Gold TI310D4
Model

Phoenix Gold TI310D4

Rating
DIAM
10"
FS(Hz)
33.3
VAS(l)
13.1
QTS
0.5
PWR(W)
1200
SPL(dB)
81.3
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
33.3
Vas(l)
13.1
Qts
0.5
Qms
5.17
Qes
0.554
Bl(Tm)
14.1
Mms(gr)
215
Cms(mm/N)
0.106
Rms(kg/s)
8.709
Le(mH)
0
Re(Ohm)
2.5
Sd(sq.mm)
33000
Vd(l)
0.66
X-max(mm)
20
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.3
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
235
Mounting Depth (mm)
158
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6
