Model

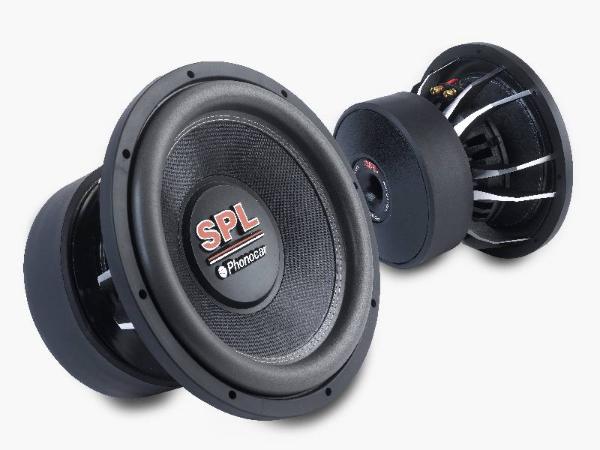

Phonocar 2/796
Rating
DIAM
12"
FS(Hz)
32
VAS(l)
26.4
QTS
0.39
PWR(W)
3000
SPL(dB)
84.9
IMP(Ohm)
4x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
26.4
Qts
0.389
Qms
4.6
Qes
0.425
Bl(Tm)
24.6
Mms(gr)
346
Cms(mm/N)
0.071
Rms(kg/s)
15.12
Le(mH)
1.776
Re(Ohm)
3.7
Sd(sq.mm)
51242
Vd(l)
0.41
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
84.9
Sensitivity(dB) 2.8-V
88.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
330
Cutout Diameter (mm)
284
Mounting Depth (mm)
194
Magnet Diameter (mm)
200
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
