Model

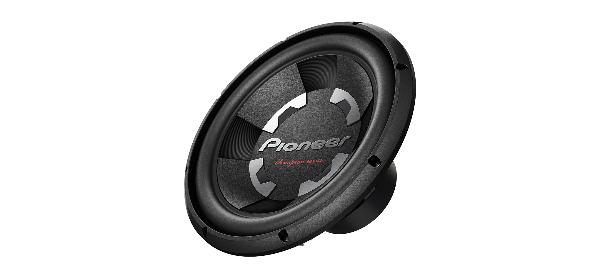

Pioneer TS-300S4
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
12"
FS(Hz)
27
VAS(l)
77.9
QTS
0.7
PWR(W)
1400
SPL(dB)
93
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
27
Vas(l)
77.9
Qts
0.7
Qms
13.3
Qes
0.74
Bl(Tm)
0
Mms(gr)
150
Cms(mm/N)
0.232
Rms(kg/s)
2.01
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
48651
Vd(l)
0.245
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1400
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
93
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
