Model

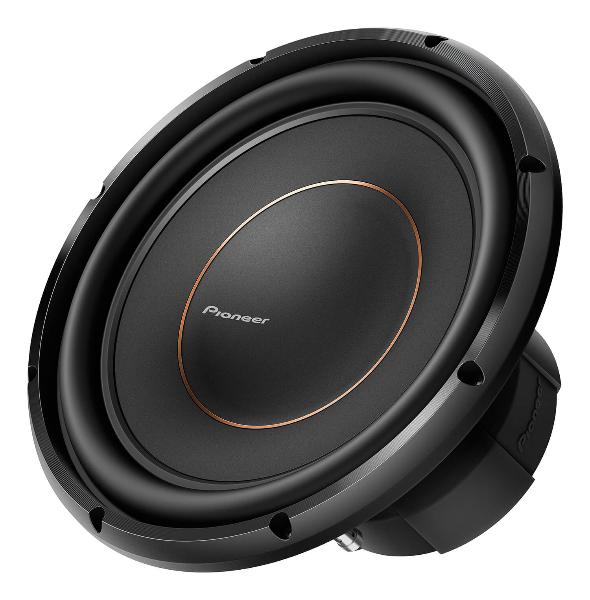

Pioneer TS-D12D4
Rating
DIAM
12"
FS(Hz)
34
VAS(l)
47.9
QTS
0.69
PWR(W)
2000
SPL(dB)
85.9
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34
Vas(l)
47.9
Qts
0.69
Qms
9.75
Qes
0.74
Bl(Tm)
9.5
Mms(gr)
183
Cms(mm/N)
0.13
Rms(kg/s)
4.01
Le(mH)
1.14
Re(Ohm)
3.3
Sd(sq.mm)
51464
Vd(l)
0.669
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.24
Sensitivity(dB) 1-W
85.9
Sensitivity(dB) 2.8-V
89.7
Mounting Information
Speaker Displacement (l)
1.33
Total Diameter (mm)
0
Cutout Diameter (mm)
281
Mounting Depth (mm)
157
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
