Model

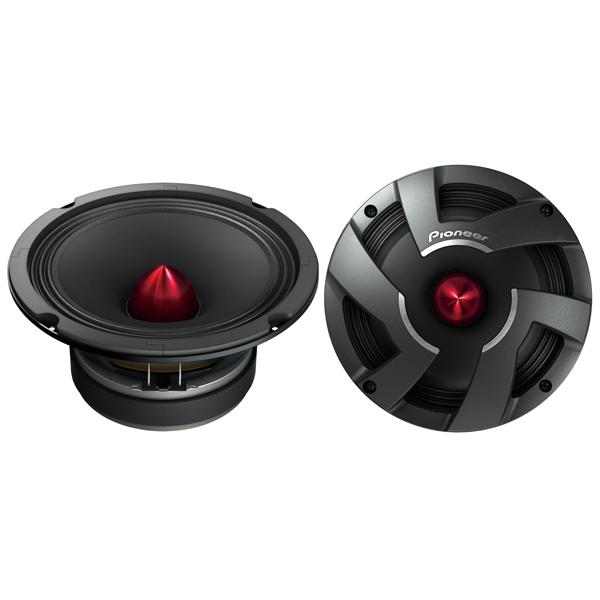

Pioneer TS-M800PRO
Rating
DIAM
8"
FS(Hz)
85
VAS(l)
14
QTS
0.4
PWR(W)
700
SPL(dB)
94.8
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
85
Vas(l)
14
Qts
0.4
Qms
5.4
Qes
0.432
Bl(Tm)
0
Mms(gr)
17
Cms(mm/N)
0.204
Rms(kg/s)
1.7
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
21997
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
700
RMS Power(W.)
180
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
1.92
Sensitivity(dB) 1-W
94.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
