Model

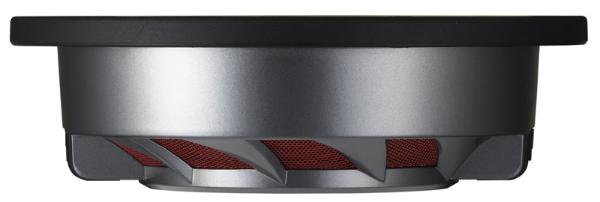

Pioneer TS-SW1241D(PREMIER)
Rating
DIAM
12"
FS(Hz)
33.1
VAS(l)
19.5
QTS
0.73
PWR(W)
1400
SPL(dB)
81.4
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.1
Vas(l)
19.5
Qts
0.73
Qms
11.73
Qes
0.78
Bl(Tm)
16.6
Mms(gr)
280
Cms(mm/N)
0.083
Rms(kg/s)
4.964
Le(mH)
2.41
Re(Ohm)
3.3
Sd(sq.mm)
40711
Vd(l)
0.259
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1400
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.09
Sensitivity(dB) 1-W
81.4
Sensitivity(dB) 2.8-V
85.3
Mounting Information
Speaker Displacement (l)
2.43
Total Diameter (mm)
305
Cutout Diameter (mm)
246
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
