Model

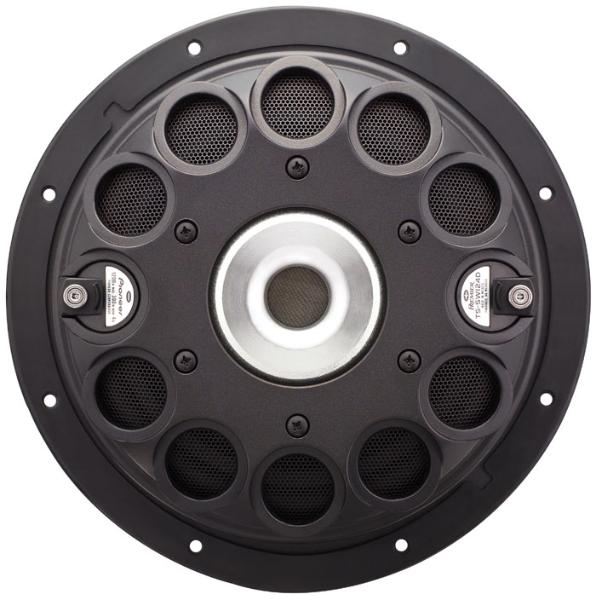

Pioneer TS-SW124D(PREMIER)
Rating
DIAM
12"
FS(Hz)
31.7
VAS(l)
28.1
QTS
0.55
PWR(W)
1200
SPL(dB)
83.9
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.7
Vas(l)
28.1
Qts
0.55
Qms
38.54
Qes
0.56
Bl(Tm)
17
Mms(gr)
207
Cms(mm/N)
0.122
Rms(kg/s)
1.07
Le(mH)
2.92
Re(Ohm)
3.9
Sd(sq.mm)
40272
Vd(l)
0
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.15
Sensitivity(dB) 1-W
83.9
Sensitivity(dB) 2.8-V
87
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
278
Mounting Depth (mm)
83
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
