Model

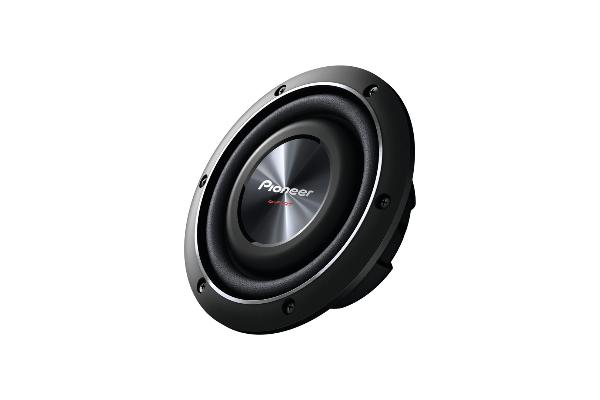

Pioneer TS-SW2002D2
Rating
DIAM
8"
FS(Hz)
65
VAS(l)
3.8
QTS
0.98
PWR(W)
600
SPL(dB)
81.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
65
Vas(l)
3.8
Qts
0.98
Qms
5.23
Qes
1.2
Bl(Tm)
10
Mms(gr)
90
Cms(mm/N)
0.067
Rms(kg/s)
7.028
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
19998
Vd(l)
0.056
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
600
RMS Power(W.)
150
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.08
Sensitivity(dB) 1-W
81.2
Sensitivity(dB) 2.8-V
85.1
Mounting Information
Speaker Displacement (l)
0.44
Total Diameter (mm)
227
Cutout Diameter (mm)
179
Mounting Depth (mm)
67
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
