Model

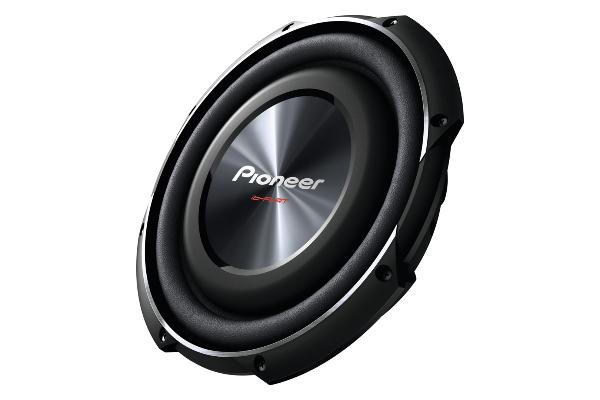

Pioneer TS-SW2502S4
Rating
DIAM
10"
FS(Hz)
42
VAS(l)
18.5
QTS
0.97
PWR(W)
1200
SPL(dB)
83
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
42
Vas(l)
18.5
Qts
0.97
Qms
12.04
Qes
1.05
Bl(Tm)
12
Mms(gr)
171
Cms(mm/N)
0.084
Rms(kg/s)
3.79
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
40000
Vd(l)
0.26
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.13
Sensitivity(dB) 1-W
83
Sensitivity(dB) 2.8-V
87.3
Mounting Information
Speaker Displacement (l)
0.68
Total Diameter (mm)
0
Cutout Diameter (mm)
249
Mounting Depth (mm)
78
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
